Rural Point: a wireless ISP in the Argentine countryside, 2006

In 2006 there was no 3G, no 4G, and no way to get online where we lived. The nearest connection was in Zárate, about 15 kilometers away across the Buenos Aires countryside. So I climbed a 35-meter radio tower, bolted an access point to the top of it, and spent a cold Saturday proving the signal reached the front porches of the people who would end up paying for it. For the next three years, six families out in the middle of nowhere checked their email and read the newspaper over that link. Then a storm took the tower down.

It didn’t have a name at the time. I’m calling it Rural Point now because it needs a filename.

One honest note before anything else. This was twenty years ago and I’m working from memory and a handful of photographs. The distances, the gain figures and the dates are as accurate as I can make them, and where I’m not sure I say so. Nothing here is reconstructed to sound better than it was.

Nobody was going to sell us this

We were living in El Aduar, near Lima, in Buenos Aires Province. Real countryside. The property was large and the houses on it were spread out over several kilometers, which matters more than it sounds like it should.

There was no DSL and no cable, and there was never going to be. That’s not a complaint about the phone company, it’s just arithmetic. Running a line out to a handful of houses that far apart doesn’t pay for itself, and no operator was going to do it out of kindness. Mobile data existed in the way that a rumor exists.

So the question stopped being “when does service get here” and became “what would it actually take to build it.” Those are very different questions. The first one you wait on. The second one has a parts list.

The expensive part was the connection, so I tested the cheap part first

Here’s the shape of the risk. The internet connection itself was the expensive piece: a monthly bill, a contract, radio hardware at both ends of a 15-kilometer link, and a commitment I’d be stuck with. The local distribution around the property was comparatively cheap.

And the risk was sitting in exactly the wrong place. If I bought the connection first and then discovered the signal couldn’t reach the far side of the property, I’d own a bill and a very tall antenna and nothing anybody wanted.

So I inverted it. Build the local network first, with no internet on it at all. An empty network is enough to answer the only question that actually mattered: does the signal get where the people are. If it did, I’d go buy the connection. If it didn’t, I’d have spent a fraction of the money finding out.

There was an old radio telephone tower on the property, around 35 meters, well above the eucalyptus line. That was the whole reason any of this was possible. The plan was an 8 dBi omnidirectional antenna at the top with an access point next to it, radiating in every direction at once.

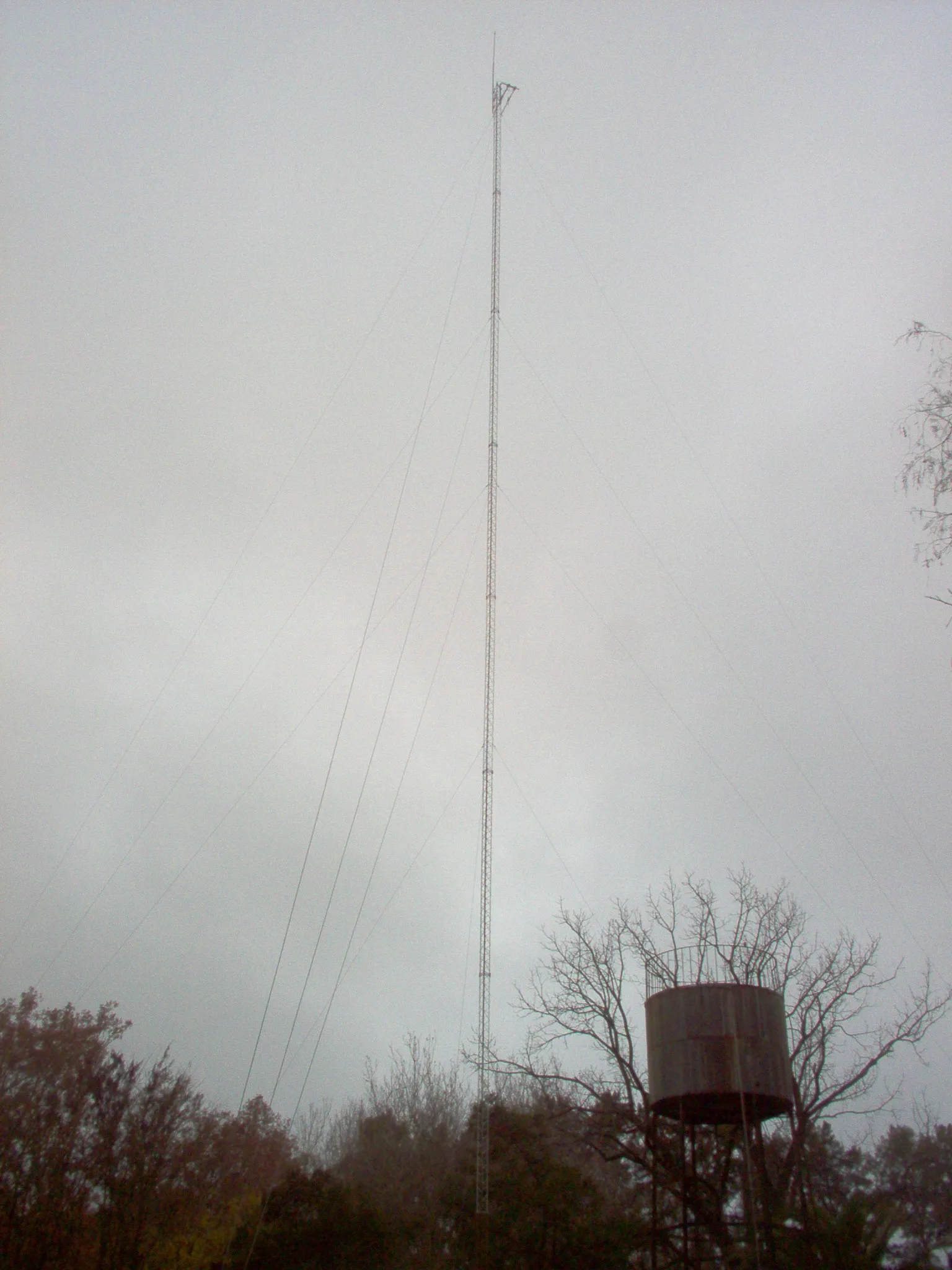

The tower at El Aduar. Around 35 meters, guyed, and already old in 2006. It’s the only reason this worked, and eventually the only reason it stopped. The water tank at the right is worth remembering for scale.

Thirty-five meters, and then you let go

Thirty-five meters sounds tall written down. I don’t think I understood what it meant until I was standing in it.

Everything looks different from above the tree line, and the thing nobody warns you about is that the tower moves. Not dramatically. But you can feel the whole structure swinging slowly with the wind, and your body has opinions about that which your brain is not consulted on. It was my first time climbing anything like it.

Then I got to the height I needed to work at, and I had to let go.

That’s the moment I still remember most clearly. I had the harness around my waist, but up to that point I’d been holding the tower with my hands, which is what your hands want to do. Now I had to trust the harness, let go of the structure, reach around into the backpack, and take out the access point.

I was scared and I was completely lit up at the same time. I had climbed thirty-five meters with an access point in a backpack. The access point was going in.

I spent about an hour up there. I mounted everything, tightened every screw I could reach, used thread locker and doubled up the lock washers, and generally behaved like someone who had thought carefully about what a Sudestada blowing in off the Río Paraná does to hardware that was installed casually. That wasn’t craftsmanship for its own sake. It was arithmetic again. An hour with a wrench at the top of the tower is cheap. Climbing it a second time because something worked loose is not.

TAKEAWAY: when doing it twice is expensive enough, overbuild the first time. The cost of the install is not the install, it’s the repeat visit.

The strange part is that I don’t remember being tired while I was up there. The adrenaline handled that. What I remember is cold wind on my fingers, cold metal, and the movement.

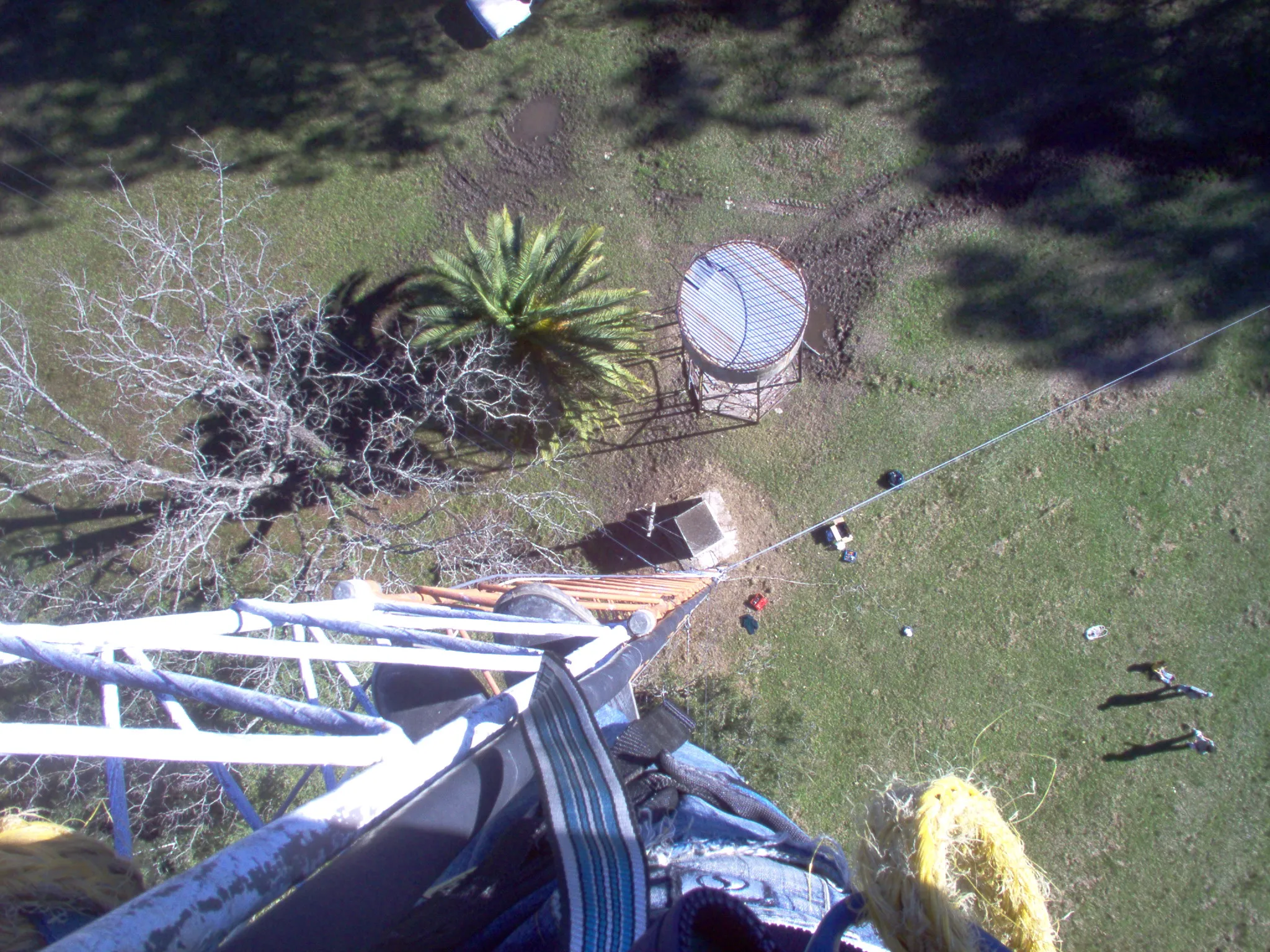

Straight down from where I was working. Those two specks on the grass are people. The circle near the top of the frame is that same water tank.

Then everything was installed and it was time to come down, and my body finally submitted its invoice. My legs started shaking as soon as I was on the ground and I had to lie down. The noon sun was warm after an hour in that wind, and I have rarely been so glad to be horizontal. I stayed there about twenty minutes while my brother-in-law wandered over every so often to hand me a mate.

The Imperial March test

Now I needed to know how far the signal actually went.

My brother-in-law had a white Ford Falcon. I still remember that car. It was a cold Saturday around midday in August, and we went out to map the property with an old HP laptop plugged into the 12-volt outlet, because laptop batteries in 2006 were decorative. The laptop had a terminal open, pinging the access point on the tower continuously.

The antenna was a grid parabolic: a big open-frame dish about 60 by 45 centimeters, bolted to a length of wooden pole. A 24 dBi grid, and the same model that would later end up at every subscriber’s house, which is not a coincidence. What matters about that number is the beamwidth: a dish like that radiates in a cone of maybe seven to ten degrees. It does not spray. You cannot wave it out of a car window and expect anything, because at that beamwidth you are either pointed at the tower or you are pointed at a field.

So the survey was slow and deeply unglamorous. We crawled along gravel roads at walking pace, stopped, got out, aimed the dish at where we thought the tower was by hand, and watched the terminal. Then we got back in and did it again a few hundred meters later.

Somewhere around three and a half or four kilometers out, the replies started coming back.

That felt like the finish line for about ninety seconds, and then the engineering part of my brain pointed out that a ping proves almost nothing. It tells you one small packet survived the trip and came home. It doesn’t tell you the link will carry anything a person would actually want to do.

Which is why there was a computer at the bottom of the tower. It was a Pentium II built from OEM parts, my own previous personal machine, and it was running VLC with an MP3 of the Imperial March on a loop.

$ ping 10.10.0.1
64 bytes from 10.10.0.1: icmp_seq=1 ttl=64 time=4.2 ms
64 bytes from 10.10.0.1: icmp_seq=2 ttl=64 time=3.9 ms
64 bytes from 10.10.0.1: icmp_seq=3 ttl=64 time=4.1 ms
$ vlc http://10.10.0.1:8080

Reconstructed from memory, not a capture. In 2006 I was not screenshotting my own terminal, which I now regret.

I typed the address into VLC in the parked Falcon, hit enter, and the Imperial March came blasting out of those terrible little laptop speakers, four kilometers from the machine that was playing it.

That was the moment it stopped being an experiment. A ping tells you a packet survived. Darth Vader coming out of a laptop speaker in a parked car tells you the link will carry whatever you decide to put on it.

There was also something perfectly appropriate about the soundtrack. Every square kilometer around that tower had just quietly become my little empire, and it was traveling through the air.

TAKEAWAY: a reply is not a service. Test with the thing the user will actually do, not with the thing that is easy to measure.

The survey route was the sales route

Here’s the part I didn’t appreciate at the time.

We weren’t only mapping radio coverage that Saturday. We were stopping at the front porches of the neighbors who might want this. Every stop where the dish found the tower was a stop at somebody’s house, and I’d knock and explain what we were doing and ask whether they’d be interested if it worked.

By the end of the day I had two lists, and they were the same list. Where the signal reached, and who wanted it. Every confirmed link was also a confirmed install site, with a person attached who had already said yes.

That turned out to matter enormously, because it’s what made the money work. I put up the cost of the backhaul with one neighbor, the two of us. Nobody else spent anything until the link was live and they could see it running. Once it was working, each family that joined paid for their own materials, the directional antenna, the access point, the mount, the cable, plus my installation fee. The monthly ISP bill got split across whoever was subscribed at the time.

Which means I de-risked the money exactly the way I’d de-risked the radio. Prove the cheap thing first, spend on the expensive thing second, and don’t buy eight households’ worth of hardware for eight households that haven’t agreed to anything yet.

TAKEAWAY: the trip that proves your technology can be the same trip that proves your demand. Most people run those separately, or skip the second one and find out later.

The chain: Zárate, a relay at Atucha, our tower, six roofs

With coverage proven, I went and bought the connection.

Even that wasn’t a matter of calling an ISP and getting a cable. The provider was in Zárate, but the signal didn’t come to us directly from there. As I remember it, they were already delivering connectivity to a Gendarmería Nacional station at the Atucha nuclear complex, and our link was relayed on from there out to the tower at El Aduar.

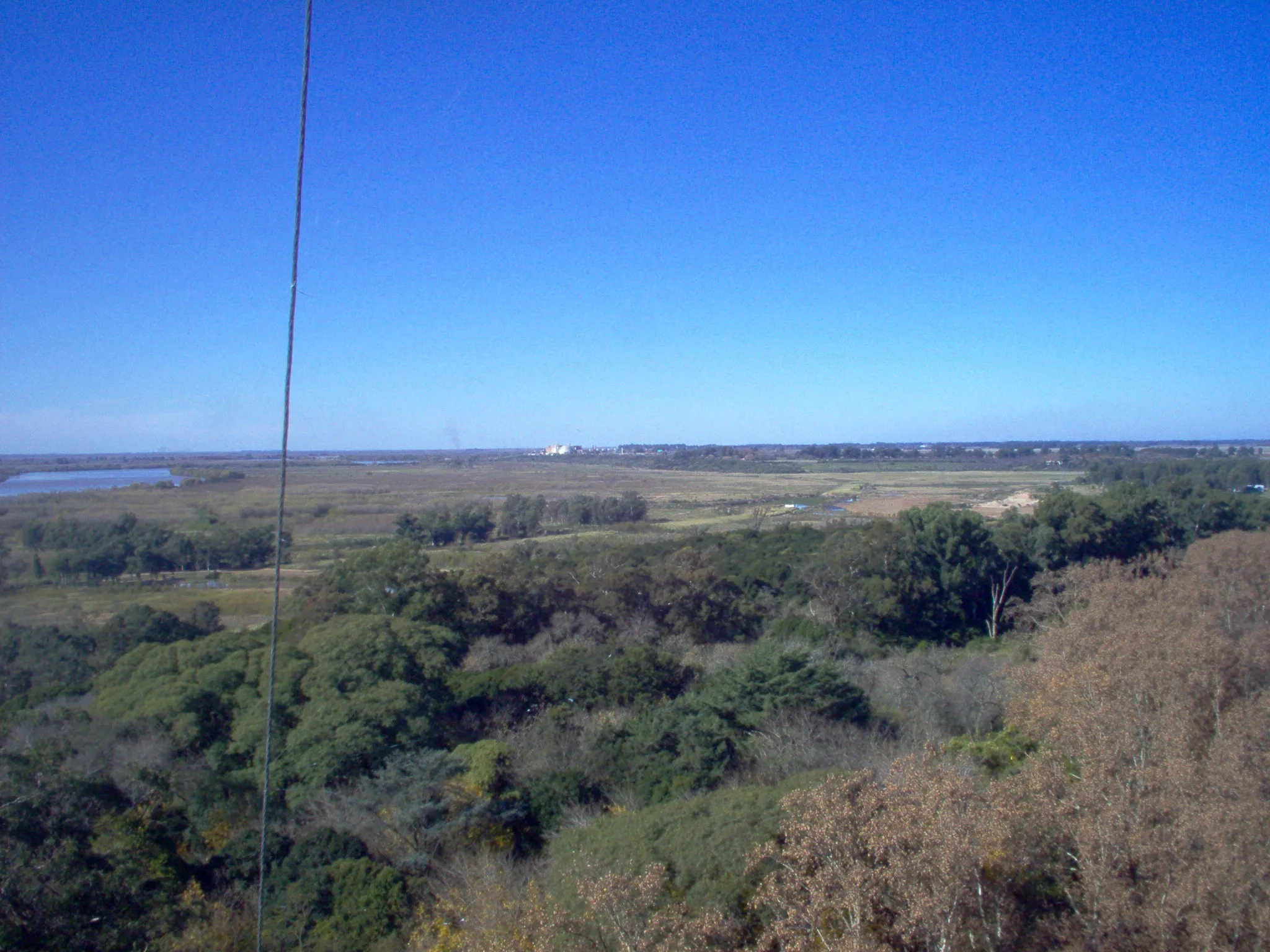

The view along the backhaul, taken from the work position. The pale block on the horizon is the Atucha complex. The directional antenna at the top of the tower pointed at that, and the connection came back along the same line.

So the full path looked like this:

Redrawn for this post. Roughly 15 kilometers of backhaul into one tower, then about 4 kilometers of local coverage out of it.

The tower carried two jobs at once, which is the part worth drawing. At the top, the 8 dBi omni and its access point covered the property. Also at the top, a dish pointed back at the relay to bring the connection in. At the bottom, in a box at ground level where I could reach it without a harness, a MikroTik router did the actual routing between the two.

That split was deliberate. Anything that might need a firmware update, a reboot, or a configuration change lived at the bottom of the tower. Only the antennas and the radios that had to be high were high.

Redrawn for this post. Everything serviceable is at ground level, which was the only design decision made entirely out of respect for the climb.

At each house, a 24 dBi grid dish pointed back at the tower. The same kind of dish I’d been holding on a wooden pole during the survey, which is not a coincidence: the survey rig was the product, tested in advance. Next to it, in a weatherproof plastic box, sat a D-Link access point running custom firmware, and the cable ran down into the house from there.

Where it went depended on the house. A roof, the water tank, a tall side wall. Whichever had the cleanest line of sight back to the tower won, and that was the only thing that decided it. Six to eight families, depending on the year.

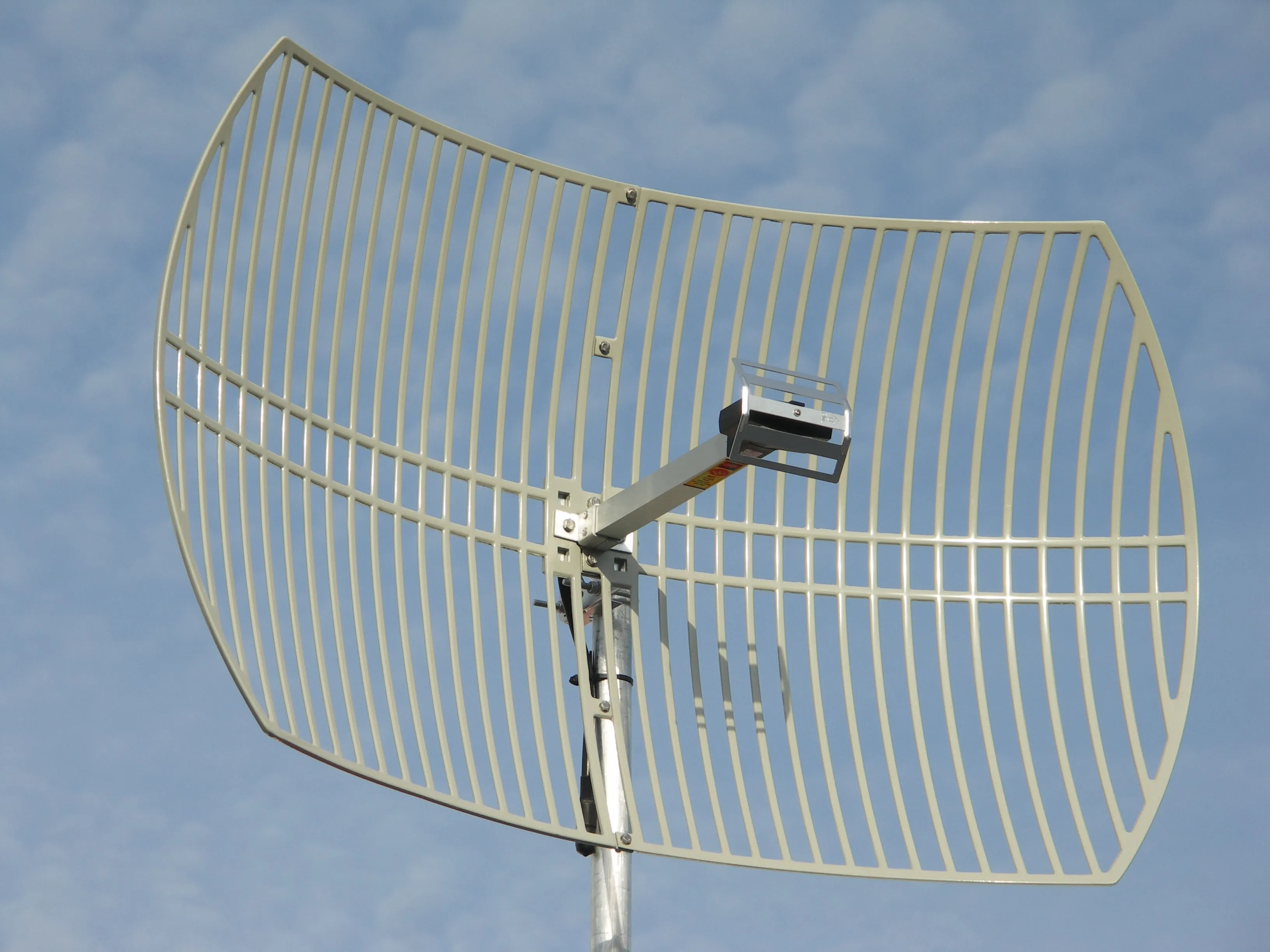

Custom-firmware D-Link access points behind aluminum grid parabolics like this one, roughly 60 by 45 centimeters, mounted wherever the line of sight back to the tower was cleanest. Not one of ours: I shot dozens of the real installs and cannot find a single one today, which is its own small lesson about archives.

The connection was about 1 Mbps symmetrical, shared across all of them.

By any standard you’d apply today that is a rounding error. It’s worth being honest about what it did and didn’t do. It was not enough for video. It was not enough for large downloads. It was enough to check your email, read the newspaper, look something up, and send a message to somebody. Out there, that wasn’t a slow connection. It was the difference between nothing and something, and nothing had been the only option available.

Three years, then a Sudestada

It ran for about three years, essentially nonstop.

That’s the number that counts. Not a weekend demo. Not a proof of concept sitting on a bench with somebody watching it. Three years of being the thing a handful of households in the countryside relied on to reach the internet, in weather, without a support contract or a spare parts budget or anybody to call.

Then a storm brought the tower down, which is about as definitive an ending as a wireless network can get.

And here’s the design flaw, stated plainly, because it’s the most useful thing in this entire post. Every house had its own antenna and its own access point. The distribution was properly distributed. But all of it pointed at one structure. There was no second tower, no fallback path, and no plan for one. The whole network had exactly one single point of failure, I knew it the entire time, and after three years the weather went and found it.

The decisions, on the record

DEC	Decision	Status
DEC 001	Build the local network first and prove coverage before paying for any backhaul	SETTLED
DEC 002	One 8 dBi omni at 35 meters rather than sectors: fewer parts up high, one climb	SETTLED
DEC 003	Survey stopped and hand-aimed, not drive-by. A dish that narrow cannot be aimed from a moving car	SETTLED
DEC 004	Run the survey to the porches of likely subscribers, so coverage and demand were proven on one trip	SETTLED
DEC 005	Validate with real traffic, an audio stream, not with ICMP replies	SETTLED
DEC 006	Two households fund the backhaul. Every later subscriber funds their own antenna, AP and install	SETTLED
DEC 007	Split the monthly ISP bill across active subscribers	SETTLED
DEC 008	Thread locker and doubled lock washers on everything up the tower: the second climb is the real cost	SETTLED
DEC 009	Routing at ground level (MikroTik in a box at the base), radios only at the top. Nothing serviceable lives at 35 meters	SETTLED
DEC 010	Accept a single point of failure at the tower, with no fallback path	REVISED

DEC 010 is the one I got wrong, and I got it wrong knowingly. A second relay point would have cost real money to serve a failure that hadn’t happened yet, so I didn’t build one. Three years later the entire network ended in an afternoon. I still think the call was defensible on the economics. I no longer think it was defensible to make it silently, without ever telling the people paying me that their service hung on one guyed tower.

What carries over

I didn’t know how to do any of this before I started. I wasn’t a network engineer. I learned the RF, bought or borrowed what I needed, tested things, got things wrong, and kept going until it worked.

What I recognize now, looking back at it, isn’t the radio knowledge. It’s the order of operations, and the order hasn’t changed in twenty years:

Find the need nobody is being paid to serve. Identify which part is expensive and which part is risky, and notice when they aren’t the same part. Build the cheapest possible test of the riskiest assumption. Prove it with real traffic and real people, not with a metric that’s convenient to collect. Then spend.

I run that same sequence now on automation projects and dashboards and AI workflows, with better tools and much worse stories. The acronyms change every few years. The sequence doesn’t.

The thing I would do differently is DEC 010, and it generalizes further than radio. If everything you’ve built points at one component, you haven’t built a system. You’ve built a very good demonstration that happens to still be running.

This is the first of these. I have twenty years of projects that were never written down anywhere, and I’m going to work through the ones I can still find the photographs for.
